2006 Dodge Ram Fuel Pump Relay Removal and Installation

2006 Dodge Ram Fuel Pump Relay Removal and Installation

The 2006 Dodge Ram fuel pump relay removal and installation procedures refer to the steps involved in removing and replacing the fuel pump relay in a 2006 Dodge Ram vehicle. The fuel pump relay is a small electrical component that is responsible for controlling the operation of the fuel pump, which is a vital component of the vehicle's fuel system. It is located in the Power Distribution Center (PDC), which is typically located under the hood of the vehicle. The fuel pump relay removal process involves locating the PDC, removing the cover to expose the fuel pump relay, and carefully pulling the relay out of its socket in the PDC. The installation process involves inserting the fuel pump relay back into the socket in the PDC and replacing the cover. These procedures are important to ensure that the fuel pump is functioning properly and that the vehicle is running smoothly. If the fuel pump relay is damaged or not functioning properly, it may be necessary to remove and replace it to fix any issues with the fuel system.

The fuel pump relay is a small electrical component that is responsible for controlling the operation of the fuel pump in your vehicle. It is located in the Power Distribution Center (PDC), which is typically located under the hood of your vehicle. You can find the exact location of the fuel pump relay by looking for a label on the PDC cover. The fuel pump relay has 5 pins and operates at a voltage of 12 volts.

Operation

The fuel pump relay is controlled by the Powertrain Control Module (PCM), which is a computer that manages the engine and transmission of your vehicle. When the ignition key is turned on, the PCM sends a signal to the fuel pump relay to energize the fuel pump. This allows fuel to be pumped from the fuel tank to the engine, enabling the engine to start and run. However, the PCM will shut down the fuel pump relay within 1-3 seconds unless the engine is running or the starter motor is engaged.

Removal

To remove the fuel pump relay, you will need to follow these steps:

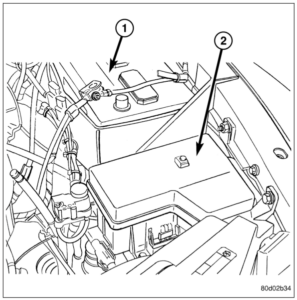

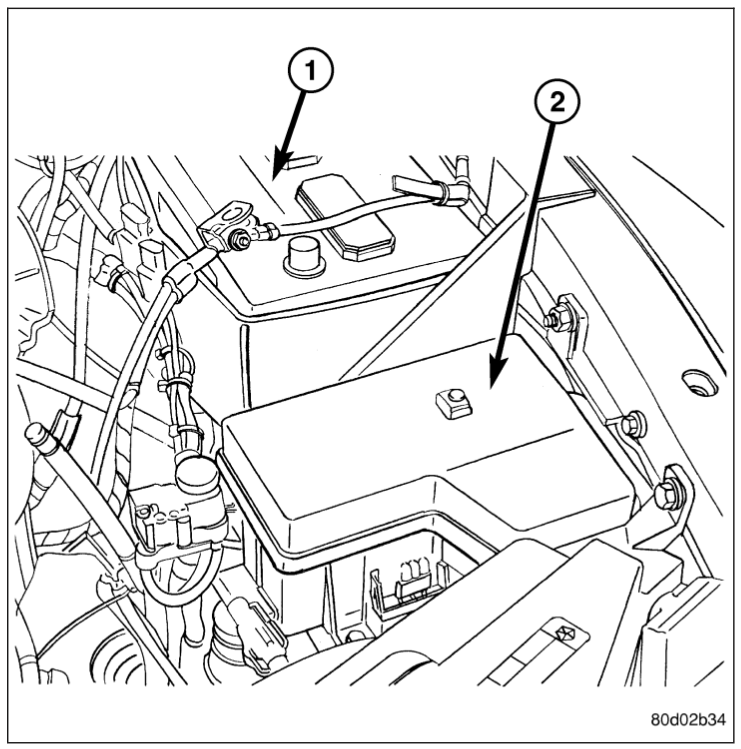

2006 Dodge Ram Fuel Pump Relay Location Remove Install
#2 Power Distribution Center (PDC)
  1. Locate the PDC (2) in your vehicle. It is typically located under the hood, and you can find the exact location by looking for the label on the PDC cover.
  2. Remove the PDC cover to expose the fuel pump relay.
  3. Carefully remove the relay from the PDC by gently pulling it out of its socket.
  4. Inspect the condition of the relay terminals and PDC connector terminals for any damage or corrosion. If necessary, repair these components before reinstalling the relay.
  5. Check the pin height of the relay and PDC connectors. The pin height should be the same for all terminals within the connector. If necessary, repair any discrepancies before reinstalling the relay.
  6. Once you have inspected and repaired any necessary components, you can reinstall the fuel pump relay by inserting it back into its socket in the PDC.

Installation

To install the fuel pump relay in your vehicle, you will need to follow these steps:

  1. Locate the Power Distribution Center (PDC) in your vehicle. It is typically located under the hood, and you can find the exact location by looking for the label on the PDC cover.
  2. Once you have located the PDC, remove the cover to expose the sockets where the relays are installed.
  3. Carefully insert the fuel pump relay into the appropriate socket in the PDC. Make sure that the pins on the relay are properly aligned with the corresponding connectors in the socket.
  4. Once the fuel pump relay is securely installed in the PDC, you can replace the cover by pressing it back into place. Make sure that the cover is securely fastened to prevent any dirt or debris from getting into the PDC.
  5. Test the fuel pump relay to ensure that it is functioning properly. You can do this by turning the ignition key on and off a few times to see if the fuel pump is activating as expected. If you encounter any issues or the fuel pump is not functioning properly, you may need to troubleshoot the issue or seek professional help.

In conclusion, removing and installing the fuel pump relay on a 2006 Dodge Ram is a relatively straightforward process that can be completed with a few basic tools. By locating the Power Distribution Center (PDC) under the hood of the vehicle, removing the cover, and gently pulling the fuel pump relay out of its socket, you can easily access the relay for inspection and repair. After making any necessary repairs, you can reinstall the fuel pump relay by inserting it back into the socket in the PDC and replacing the cover. It is important to test the fuel pump relay after installation to ensure that it is functioning properly and the fuel pump is activating as expected. If you encounter any issues during the removal or installation process, or if the fuel pump is not functioning properly, it is recommended to seek professional help to troubleshoot and resolve the issue.
